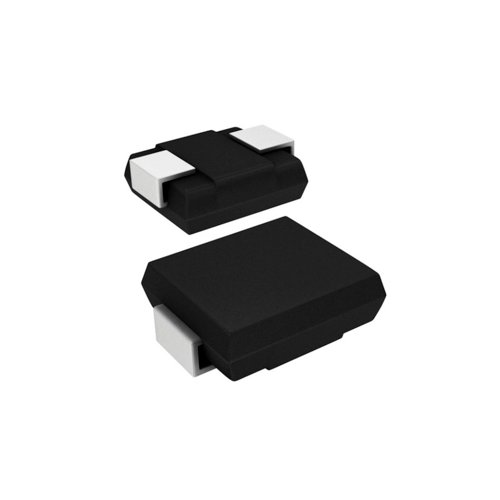

TVS Diode – MTTVSSMAJ3R3
₹10.00 Original price was: ₹10.00.₹8.00Current price is: ₹8.00.
You save
Features
- Fast response time
- Low profile package
- Glass passivated junction
- Package: SMAJ(DO-214AC)
- Excellent clamping capability
- Stand-Off Voltage: 5.0 V ~ 440 V
- Surface mount transient voltage suppressor power 400 watts
107 in stock
Applications
- EFT Protection
- Circuit Protection
- DC/DC Converters
- Lighting applications
- I/O interface & Bus Voltage
- Protection of Switching devices
- Industrial & Consumer Electronics
