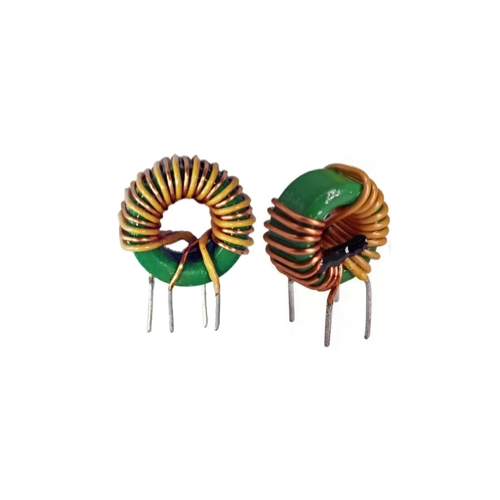

Attachment Details MTCMC12116-Common-Mode

THT Common Mode Choke – MTCMC12116201

Original price was: ₹55.00.Current price is: ₹45.00.
You save

FEATURES
  • Low DC Resistance
  • Suitable for wave soldering
  • Operating Voltage: 250 Vac
  • Current compensated choke
  • High common mode impedance
  • Operating temperature: –25 ºC to +85 ºC
    Datasheet

300 in stock

Quantity Discount (%) Price
1 - 2,999 — ₹45.00
3,000 - 29,999 11.11% ₹40.00
30,000 - 89,999 22.22% ₹35.00
90,000+ 33.33% ₹30.00
APPLICATIONS
  • EMI Suppression
  • Power Supplies (SMPS)
  • Wide Band Noise Filtering
  • Input Filters of AC-DC Converters
  • Suppression of common mode noise
SKU: MTCMC12116201 Category: Tags: , , , , , , , , , Brand:
