Category

USB Connector

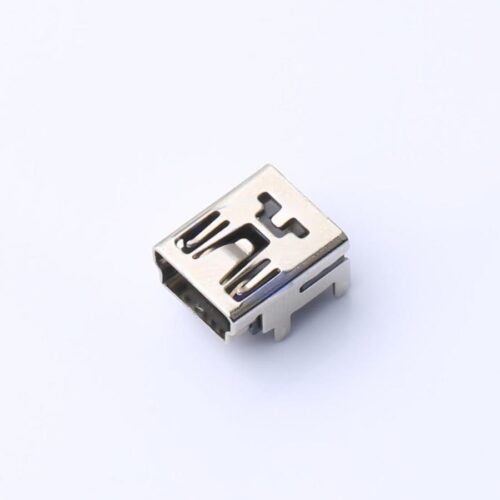

MTMNUSBT5HBU


You save (%)

Categories: ,

Related products

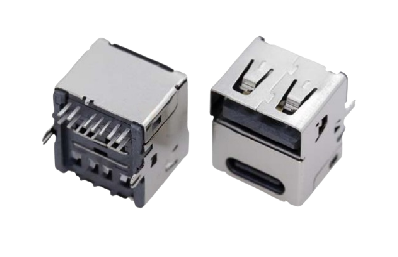

  • Sale! MTUSBACCOMBV

    USB Type A + Type C Connector

     Original price was: ₹150.00.Current price is: ₹140.00.
    You save (%)

    Order Code: MTUSBACCOMBV

    Electrical Characteristics:

    • Current Rating: 5 A Max
    • Voltage Rating: 30 V Max
    • Contact Resistance: 40 mΩ Max(initial), 50mΩ max (after 5000 tests)
    • Insulation Impedance: 100MΩ Min
    • Dielectric Withstanding Voltage: 100 V AC
    • Operating Temperature: -40°C up to +85°C
    Read more
  • Sale! MICRO USB 3.0

    MTMUSB25S

     Original price was: ₹90.00.Current price is: ₹85.00.
    You save (%)

    Part.: MTMUSB25S

    • Current Rating: 1.5A
    • Voltage Rating: 30V
    • Contact resistance: ≤100 mΩ
    • Insulation Resistance: >1000mΩ, DC 250V
    Read more
  • Sale! USB Connectors

    MTDUSBFT

     Original price was: ₹90.00.Current price is: ₹85.00.
    You save (%)

    Part.: MTDUSBFT

    • Current Rating: 1.5 A
    • Contact Resistance: 30 mΩ Max
    • Insulation Resistance: 1000 MΩ (Min)
    • Dielectric Withstanding Voltage: 500 V AC
    • Mating Force: 3.57Kgf
    • Unmating Force: 1.02Kgf
    • Voltage Rating: 30 V (DC)
    Read more
  • Sale! USB Connectors - Mini USB

    MTMNUSBT5HB

     Original price was: ₹90.00.Current price is: ₹85.00.
    You save (%)

    Part.: MTMNUSBT5HB

    • No. of Contact: 5
    • Rated Current: 1A
    • Mating Cycles: 1500
    • Type: Horizontal Female
    • Connection Type: Mini-USB
    • Operating Temperature: -40 up to +105 °C
    Read more
  • Sale! USB Connector

    MTUSBCS24

     Original price was: ₹90.00.Current price is: ₹85.00.
    You save (%)

    Part.: MTUSBCS24

    • Current Rating: 5 A
    • Voltage Rating: 5 V
    • Durability: 10000 cycles
    • Removal Force: 0.8~2.0 kgf
    • Insertion Force: 0.5~2.0 kgf
    • Insulation Resistance: 100 MΩ Min
    • LLCR Max Change of all pins: 10 mΩ
    • Dielectric Withstanding Voltage: 100 For 1 Min
    • VBUS & GND Pins and other pins: 40 mΩ / Pin
      Max
    • Operating Temperature: -25°C up to +85°C
    Read more
  • Sale! USB Type A Connector

    MTUSBATHT – USB 2.0 THT Horizontal Connector

     Original price was: ₹20.00.Current price is: ₹18.00.
    You save (%)

    USB 2.0 Type A Horizontal THT Connector

    • Order Code: MTUSBATHT
    • Durability: 1500 mating cycles
    • Lead Free and ROHS compliant
    • Mating Force: 3.57Kgf
    • Unmating Force: 1.02Kgf
    • Operating Temperature: -55°C up to +85°C

    Electrical Properties:

    • Voltage Rating: 30 V
    • Current Rating: 1.5 A
    • Contact Resistance: 30 mΩ
    • Insulation Resistance: 1000 MΩ
    • Dielectric Withstanding Voltage: 500 V AC

    Datasheet

    Read more
  • Sale! Micro Sim Card (Push-Push)

    Micro Sim Card (Push-Push)

     Original price was: ₹130.00.Current price is: ₹120.00.
    You save (%)

    Electrical Properties

    • Current Rating: 0.5 A
    • Voltage Rating: 30 V
    • Contact Resistance: 100 mΩ Max.
    • Insulation Resistance: 1000 MΩ Min.
    • Ambient Humidity Range: 80% R.H. Max.
    • Withstanding Voltage: 500V DC for 1 Minute
    • Operating Temperature: -40°C to +75°C
    Read more
  • Sale! Micro USB SMT Female (5 Pin)

    MTMUSB5S

     Original price was: ₹90.00.Current price is: ₹85.00.
    You save (%)

    Part.: MTMUSB5S

    • Current Rating: 1 A
    • Voltage Rating: 100 V (AC)
    • Contact Resistance: 30 mΩ
    • Insulation Resistance: 100 MΩ (Min)
    • Dielectric Withstanding Voltage: 200 V
      for One Minute
    Read more
  • Sale! Micro SD Card Connector

    Micro SD Card Connector

     Original price was: ₹130.00.Current price is: ₹120.00.
    You save (%)

    Electrical Properties

    • Current Rating: 0.5 A Max.
    • Voltage Rating: 5V AC/DC
    • Mating Cycles: 5000 Insertions
    • Reflow Peak Temperature: 260°C
    • Contact Resistance: 100 mΩ Max.
    • Storage Temperature: -25°C to +85°C
    • Ambient Humidity Range: 95% R.H. Max.
    • Insulation Resistance: 1000 MΩ Min./ 500VDC
    • Ambient Temperature Range: -25°C to +85°C
    Read more
  • Sale! MICRO USB 3.0

    MTUSBACCOMBV

     Original price was: ₹90.00.Current price is: ₹85.00.
    You save (%)

    Part.: MTUSBACCOMBV

    • Current Rating: 5 A Max
    • Voltage Rating: 30 V Max
    • Contact Resistance: 40 mΩ Max (initial), 50mΩ max (after 5000 tests)
    • Insulation Impedance: 100MΩ Min
    • Dielectric Withstanding Voltage: 100 V AC
    • Operating Temperature: -40°C up to +85°C
    Read more
  • Sale! Dual USB Connectors MTDUSB10FT

    Dual USB Connector – MTDUSB10FT

     Original price was: ₹55.00.Current price is: ₹40.00.
    You save (%)

    Electrical Properties

    • Current Rating: 1.5 A max.
    • Mating Force: 3.57 Kgf max.
    • Unmating Force: 1.0 Kgf min.
    • Contact Resistance: 30 mΩ max.
    • Insulation Resistance: 100 MΩ (min.)
    • Dielectric Withstanding Voltage: 100 V (AC) for 1 min.
    • Operating Temperature: -55°C to +85°C

    Material Properties

    • Contact Plating: Gold Plated
    • Contact Material: Copper Alloy Insulator
    • Flammability Rating: UL94 V-0
    • Shell: SUS Surface Material: Nickel Plating
    • Housing Material: ThermoPlastic, UL94 V-0
    Read more
